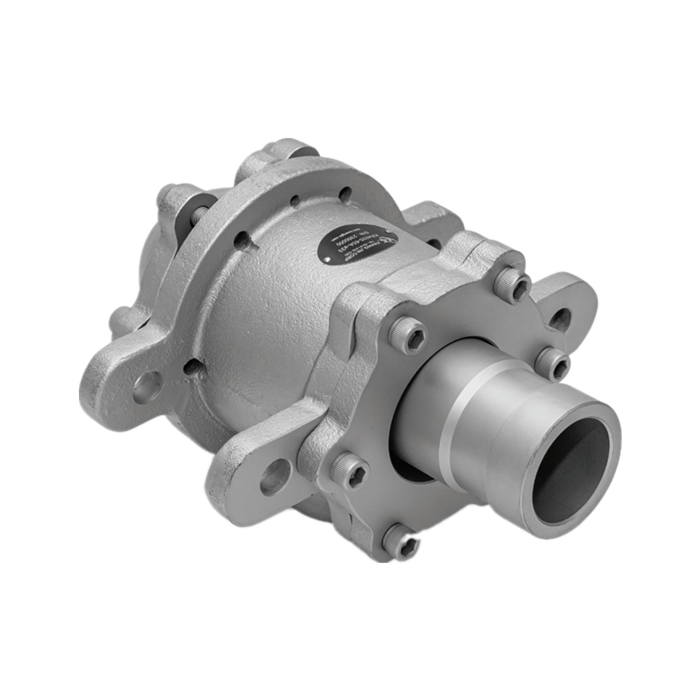

KJC4000系列

发布时间: 2015-11-19 15:31

OPERATING CONDITION	Size Range : 50A~150A (2"~6") Max. Pressure : 15kgf/cm2 (210PSI) Max. Rotation Speed : 50A~100A (2"~4") : 300RPM Max. Rotation Speed : 50A~100A (2"~4") : 150RPM Max. Temperature : 220°C (420°F) Media : Steam, Hot Oil * For Steam : Standard model (KR) * For Hot Oil : Order made model (OR) * Avoid max. pressure at max. rpm operation
FEATURES (특징)	Simple Stucture, Easily field repairable Dual Spherical Sealing Self - Alignment rotating union Low - friction / High speed rotation Non - Lubrication Suitable for High Temp. Steam & Oil
NOTE	구조가 간단하여 보수가 용이합니다. 2개의 구면Seal을 가진 자기조심형으로 회전저항이 작아 고속 회전이 가능합니다. 무 주유형으로 고온의 스팀, 열유에 적당합니다. * 최고회전수 조건에서 최고압력 사용을 피하여 주십시오.

OPERATING CONDITION

Size Range : 50A~150A (2"~6")

Max. Pressure : 15kgf/cm2 (210PSI)

Max. Rotation Speed : 50A~100A (2"~4") : 300RPM

Max. Rotation Speed : 50A~100A (2"~4") : 150RPM

Max. Temperature : 220°C (420°F)

Media : Steam, Hot Oil

* For Steam : Standard model (KR)
* For Hot Oil : Order made model (OR)
* Avoid max. pressure at max. rpm operation

FEATURES
(특징)

Simple Stucture, Easily field repairable

Dual Spherical Sealing

Self - Alignment rotating union
