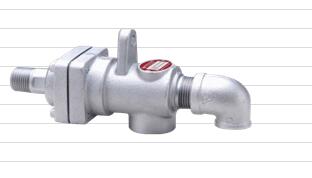

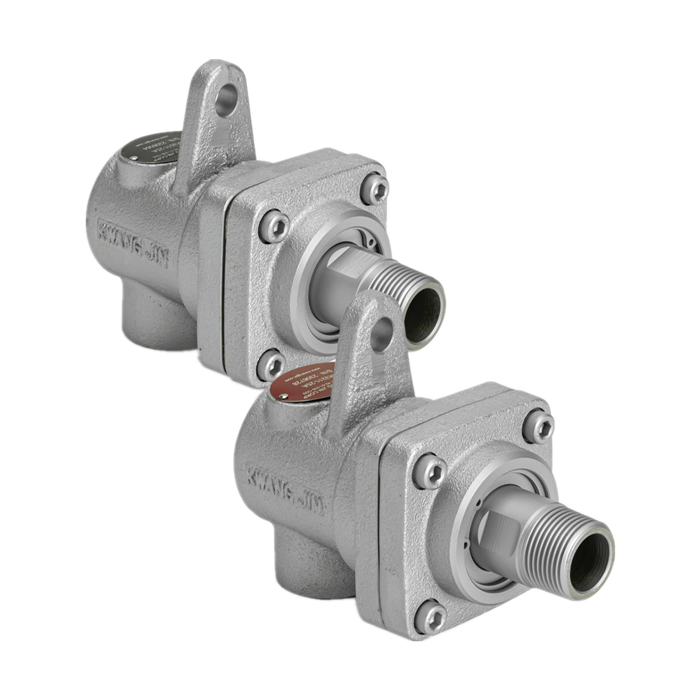

KJC3200系列

发布时间: 2015-11-19 15:27

OPERATING CONDITION	Size Range : 15A~80A (1/2"~3") Max. Pressure : 15kgf/cm2 (210PSI) Max. Rotation Speed : 15A~25A (1/2"~1") : 300RPM Max. Rotation Speed : 32A~80A (1¼"~3") : 150RPM : 300RPM Max. Temperature : 220°C (420°F) Media : 3000 - Steam / 3200 - Hot Oil * Avoid max. pressure at max. rpm operation
FEATURES (특징)	Spherical Sealing Two Widely - Spaced Carbon Bearing Self - supported & Alignment rotating union Easily field repairable 3000 Series : For Steam media / Non - Lubrication type
NOTE	2개의 Carbon Bearing과 구면 Seal을 사용하여 자체지지형, 자기조심의 구조로 설계되었으며, 구조가 간단하여 보수가 용이합니다. 3000 Series : 무 주유형으로 스팀용에 적당합니다.

OPERATING CONDITION

Size Range : 15A~80A (1/2"~3")

Max. Pressure : 15kgf/cm2 (210PSI)

Max. Rotation Speed : 15A~25A (1/2"~1") : 300RPM

Max. Rotation Speed : 32A~80A (1¼"~3") : 150RPM : 300RPM

Max. Temperature : 220°C (420°F)

Media : 3000 - Steam / 3200 - Hot Oil

* Avoid max. pressure at max. rpm operation

FEATURES
(특징)

Spherical Sealing

Two Widely - Spaced Carbon Bearing

Self - supported & Alignment rotating union
