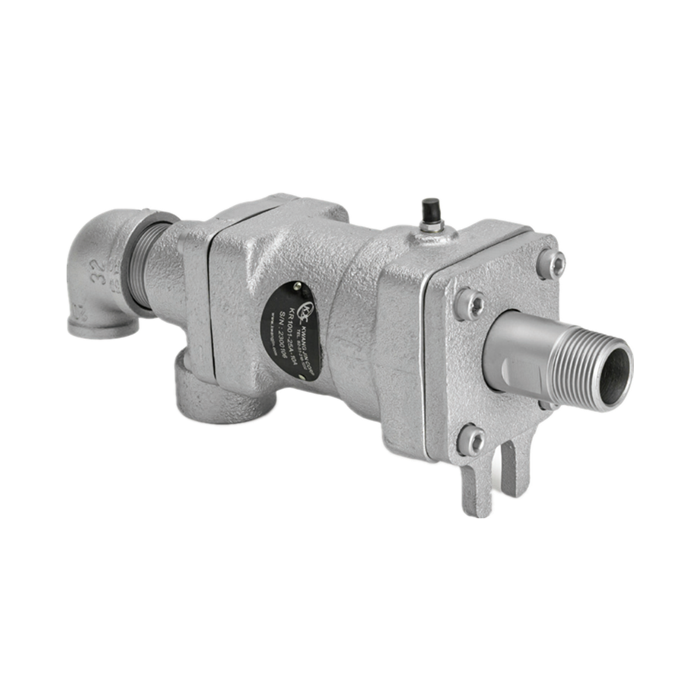

KJC1000系列

发布时间: 2015-11-19 14:44

OPERATING CONDITION	Size Range : 15A~80A (½"~3") Max. Pressure : 15kgf/cm2 (210PSI) Max. Rotation Speed : 15A~40A (½"~1½") : 300RPM Max. Rotation Speed : 50A~80A (2"~3") : 150RPM Max. Temperature : 180°C (360°F) Media : Steam, Hot Oil, Water * Avoid max. pressure at max. rpm operation
FEATURES (특징)	Low Friction High speed operation enabled at High temperature & pressure media Bellows in side, enables switching between cooling & heating operation
NOTE	회전 저항이 적고 고온고압에서 고속회전이 가능합니다. Bellows 사용으로 가열과 냉각의 교대사용이 가능합니다 * 최고회전수 조건에서 최고압력 사용을 피하여 주십시오.

OPERATING CONDITION

Size Range : 15A~80A (½"~3")

Max. Pressure : 15kgf/cm2 (210PSI)

Max. Rotation Speed : 15A~40A (½"~1½") : 300RPM

Max. Rotation Speed : 50A~80A (2"~3") : 150RPM

Max. Temperature : 180°C (360°F)

Media : Steam, Hot Oil, Water

* Avoid max. pressure at max. rpm operation

FEATURES
(특징)

Low Friction

High speed operation enabled at High temperature & pressure media

Bellows in side, enables switching between cooling & heating operation
