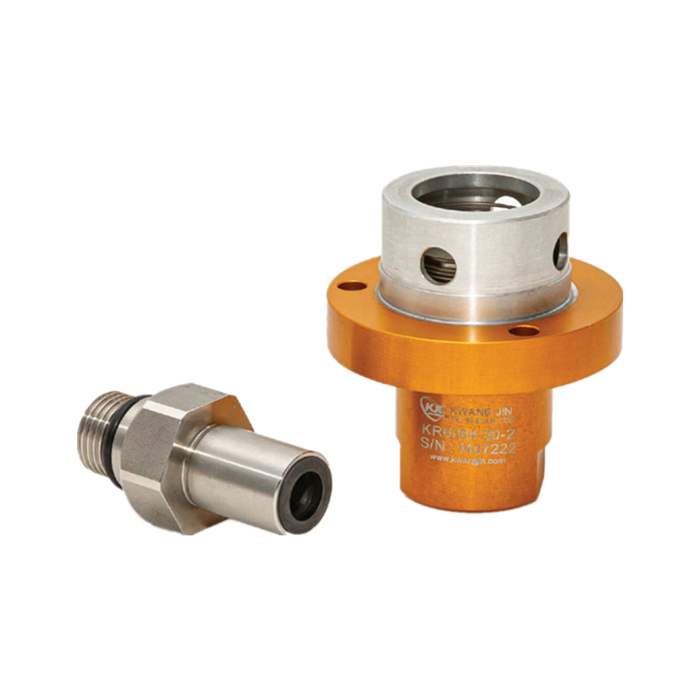

KJC-6363-30

发布时间: 2015-11-19 16:25

OPERATING CONDITION	Max. Coolant Pressure : 105kgf/cm2 (1,520PSI) Max. Rotation Speed : 30,000RPM Max. Temperature : 80°C (180°F) Media : Coolant, Hydrauil Oil * Avoid max. pressure at max. rpm operation
FEATURES (특징)	For high Speed machining Centers Bearingless configuration and separate type . Dry Running at high speed without coolant pressure Other port size and connection unions are available on order demand
NOTE	최고회전수 조건에서 최고압력 사용을 피하여 주십시오.

OPERATING CONDITION

Max. Coolant Pressure : 105kgf/cm2 (1,520PSI)

Max. Rotation Speed : 30,000RPM

Max. Temperature : 80°C (180°F)

Media : Coolant, Hydrauil Oil

* Avoid max. pressure at max. rpm operation

FEATURES
(특징)

For high Speed machining Centers

Bearingless configuration and separate type

Dry Running at high speed without coolant pressure

Other port size and connection unions are available on order demand

NOTE
