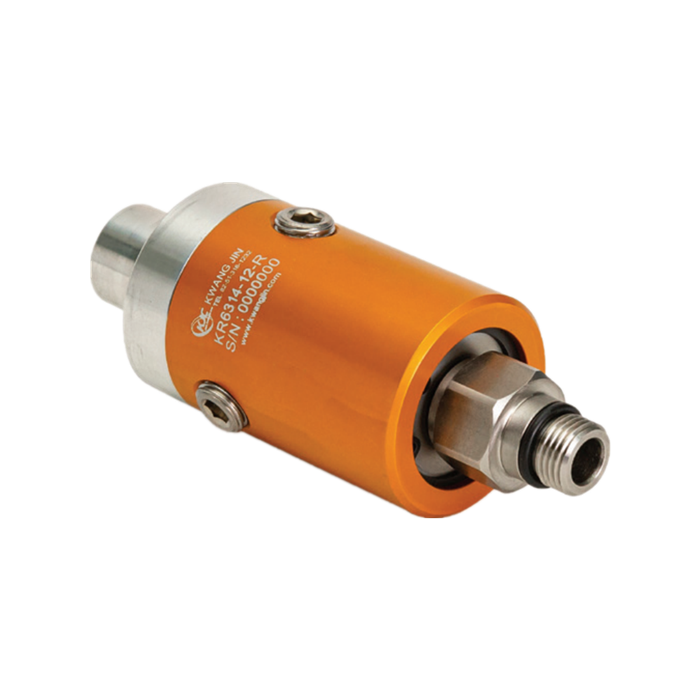

KJC-6314-12系列

服务热线：0512-57561098

欢迎光临昆山鸿旭机械有限公司网站！

KJC-6314-12系列

发布时间: 2015-11-19 16:10

OPERATING CONDITION	Max. Coolant Pressure : 70kgf/cm2 (1,000PSI) Max. Rotation Speed : 12,000RPM Max. Temperature : 80°C (180°F) Media : Coolant, Hydrauil Oil Refer to graph for maximum pressure and speed combination * Avoid max. pressure at max. rpm operation
FEATURES (특징)	For high speed machining centers Dry Running at high speed without coolant pressure Other port size and connection unions are available on orther demand
NOTE	*최고회전수 조건에서 최고압력 사용을 피하여 주십시오.

OPERATING CONDITION

Max. Coolant Pressure : 70kgf/cm2 (1,000PSI)

Max. Rotation Speed : 12,000RPM

Max. Temperature : 80°C (180°F)

Media : Coolant, Hydrauil Oil

Refer to graph for maximum pressure and speed combination

* Avoid max. pressure at max. rpm operation

FEATURES
(특징)

For high speed machining centers

Dry Running at high speed without coolant pressure

Other port size and connection unions are available on orther demand

NOTE
